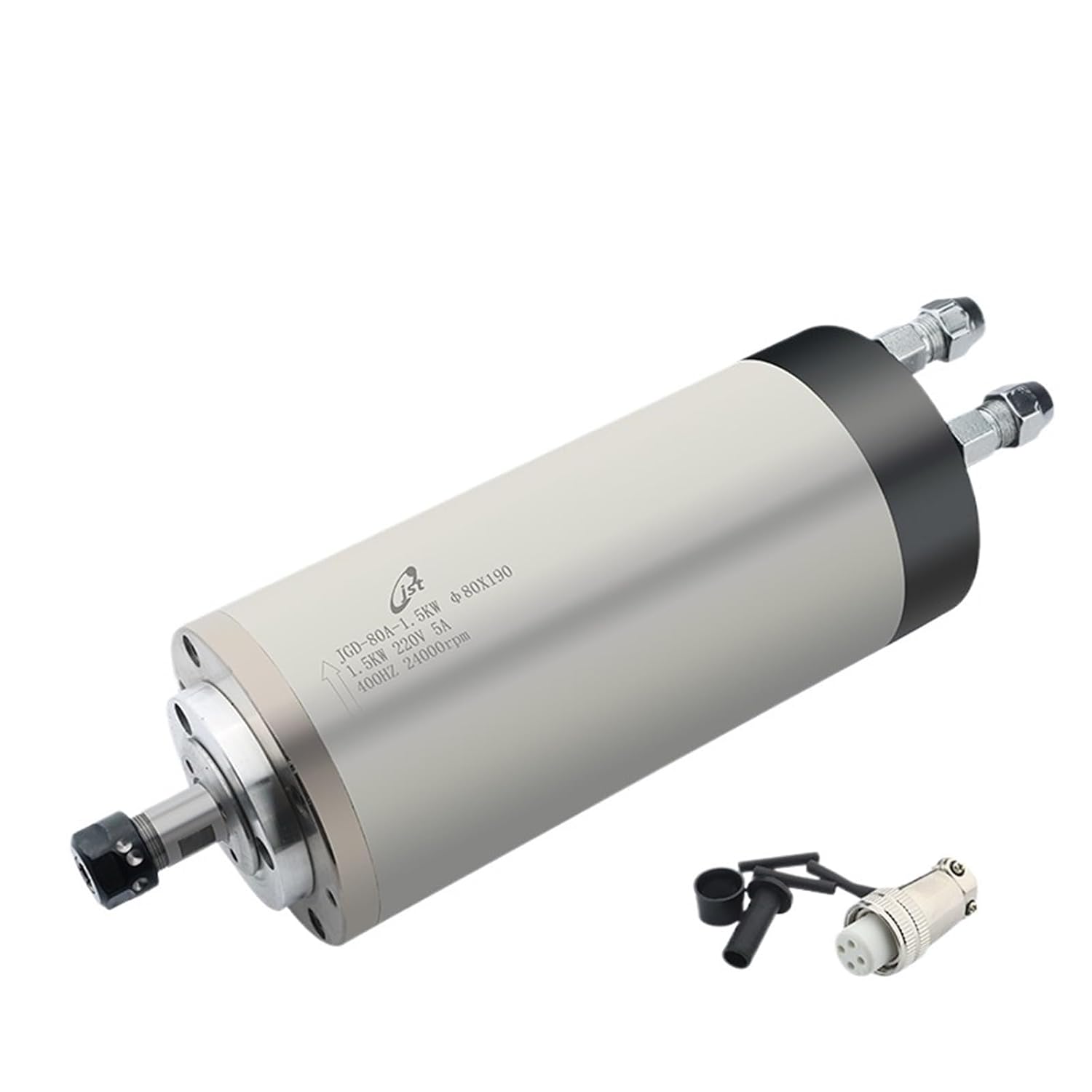

DIY Water-Cooled Motor 1.5KW ER11 Woodworking 220V 380V 4 Bearings for Router Engraving(1.5KW 220V)

Motors

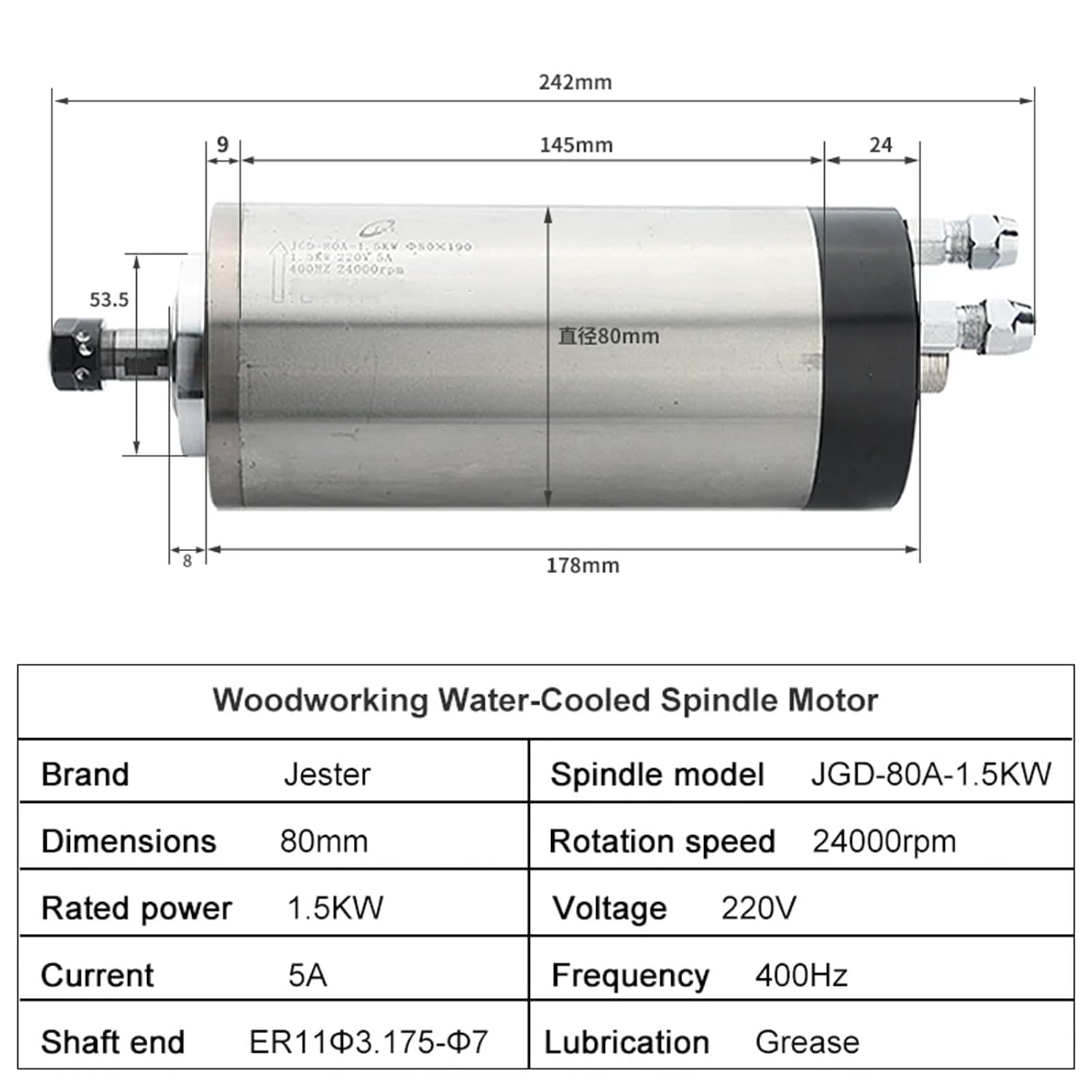

Size: 80x190mm (diameter of middle body: 80mm x length: 190mm)
Speed regulation mode: The speed can be changed by three-phase output inverter and adjusting the frequency of the inverter.
Cooling method: water cooling
Power interface: Optional H20-4 pin waterproof air . The air plugs labeled '1', '2', '3', '4', '1', '2', '3' are connected to the inverter (U, V, W), 4 are connected to the inverter The device is grounded.
Power: 1.5kw
Voltage: 220v
Current: 5A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter (mm): 80
4 fully sealed angular contact bearings

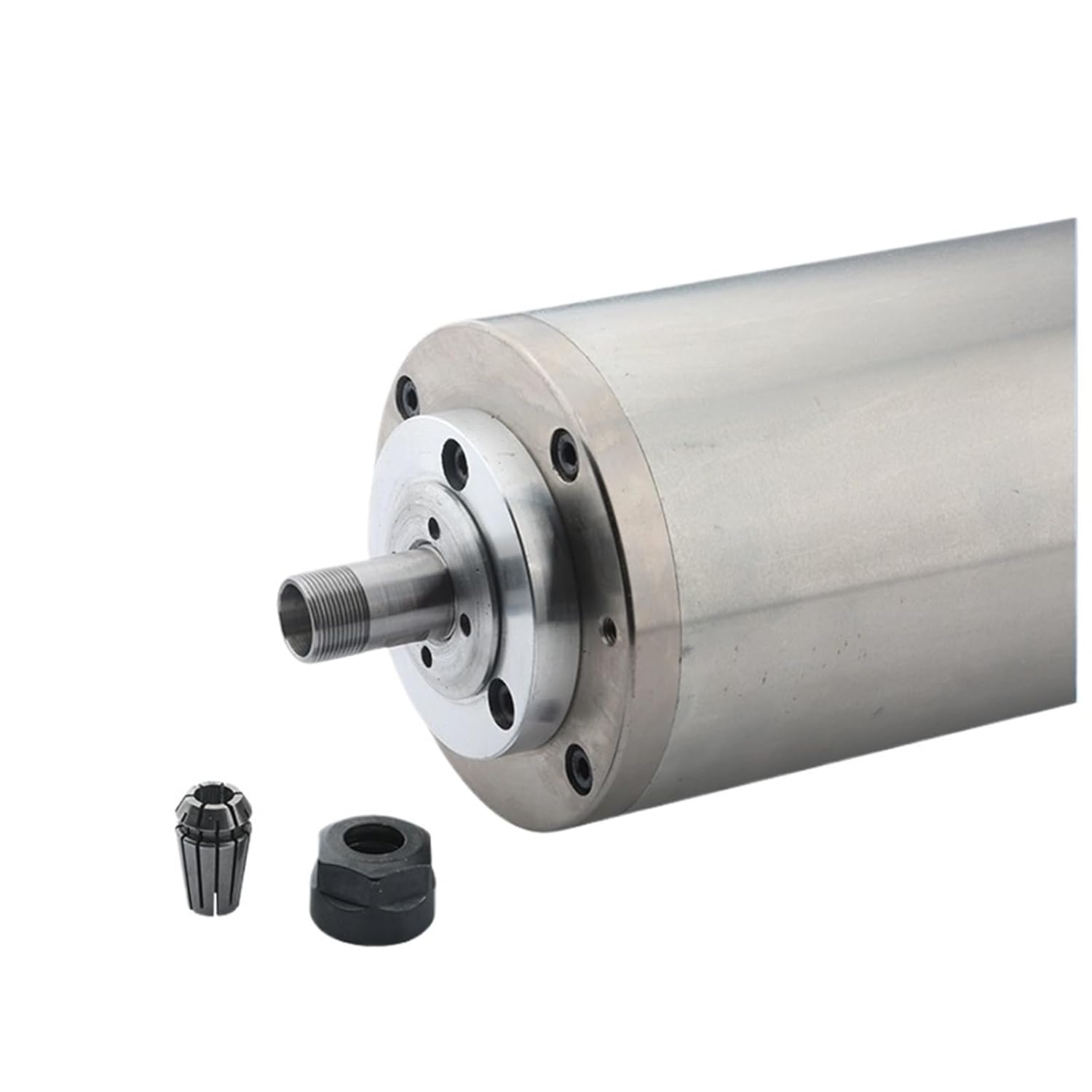

Chuck: ER11
Clamping tool diameter: 17mm, 6.5mm, 6.35mm, 6mm, 5.5mm, 5mm, 4.5mm, 4mm, 3.5mm, 3.175mm, 3mm, 2.5mm, 2mm, 1.5mm, 1mm (standard 6mm)
Water-cooled ER11 chuck
Grease lubrication

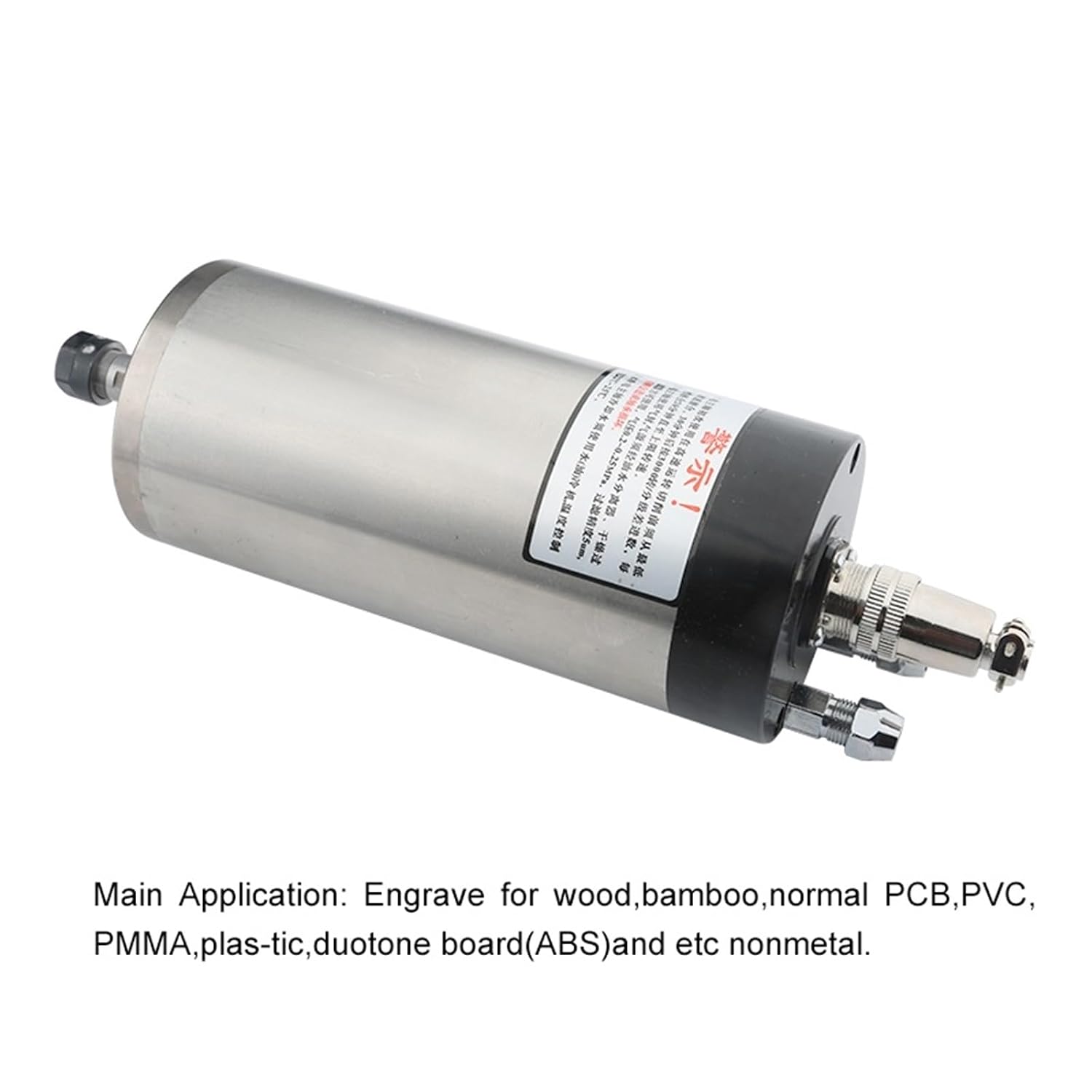

Main purpose: used for wood, bamboo, ordinary PCB, PVC, PMMA, plastic, bamboo, two-color board (ABS) and other non-metallic carvings.
The working environment temperature of the is usually -10~40.
Before installing the first electric to rotate the head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular joint bearings can extend the life of the .
The longer the length, the greater the and the greater the power.
Careful assembly makes the more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are to high temperature and low heat
3. The ball bearing has low friction, low noise and long service life.
When the is stored and transported, the bearing condition inside the high-speed grease will change, and the customer should run it at low speed for 30 minutes. Then increase slowly at a speed of 3000 rpm, running for 20 minutes each time. The and inverter should work together. The specifications and parameter settings of the inverter match the parameters.

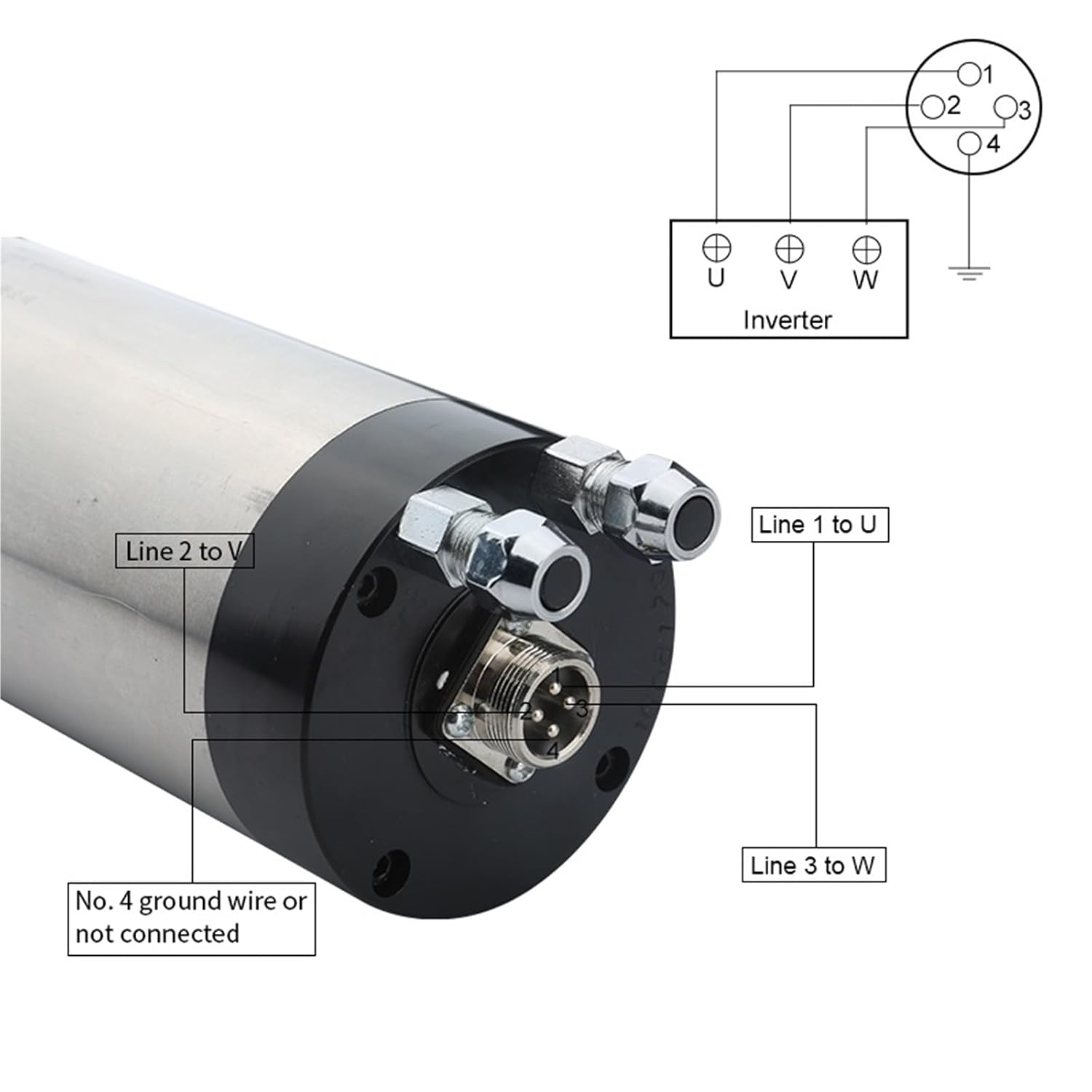

To connect the inverter main shaft, the three-phase inverter power cord should be welded to the 1 (U), 2 (V), 3 (W) pin, and the grounded pin 4. After turning on the power, observe whether the rotation axis always shows the direction. If it is inconsistent, turn it off immediately, and replace the two wires of the three-phase power supply connected to the inverter and the .
Before using the every day, it must run at low speed for 15-20 minutes. Clamp the cutter on the , the chuck nut, chuck, and cutter must be clean enough. The shank inserted into the chuck must be larger than 15mm.
The water-cooled must be used together with the water pump. Otherwise, the will quickly break.
The AC motor must be used together with the inverter. The power of the inverter needs to be equal to or greater than the power of the . Before use, please set the inverter parameters suitable for the . Otherwise, the and inverter will break immediately.
When using the , the noise is different from before, so please stop the immediately. You need to replace the bearing.
The frequency power supply is connected to the rated voltage, and the frequency should be consistent with the technical parameters of the electric . The speed can be adjusted to change the frequency, and the voltage changes in proportion.
Do not use the , apply compressed air to blow off the static coolant in the pipeline. To prevent rust, please the water hole. The should be oiled. Add anti-wave device and put it in a dry place.
To replace the bearing, some professional and technical personnel should be replaced. With special tools, the bearings should be cleaned thoroughly without removing the stator coil.
The frequency power supply is connected to the rated voltage, and the frequency should be consistent with the technical parameters of the electric . The speed can be adjusted to change the frequency, and the voltage changes in proportion.
Do not use the , the should be oiled. Add anti-wave device and put it in a dry place.
To replace the bearing, some professional and technical personnel should be replaced. With special tools, the bearings should be cleaned thoroughly without removing the stator coil.
==========
Certification : none
Drive : MOTOR
Operating Speed : 24000RPM
Model Number : JGD-80A-1.5KW
Application : Milling
Operating Speed : 24000RPM
Application : Milling
Model Number : JGD-80A-1.5KW
Drive : Motor
Origin : Mainland
Certification : NONE
Diameter : 80MM
Power : 1.5KW
Current : 5A
Voltage : 220V/360V
