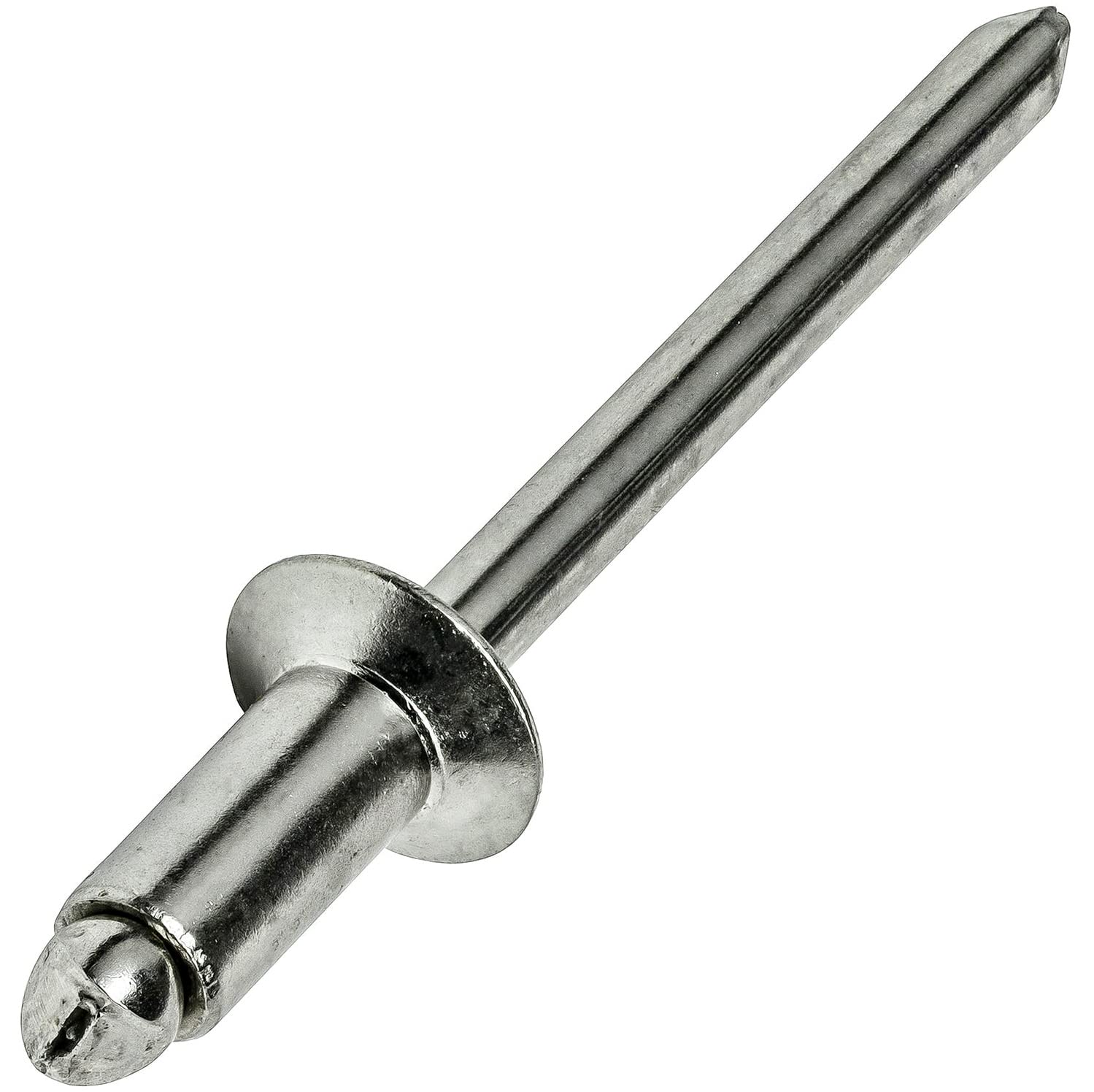

Name: Stainless Steel Pop Rivets 3/16' x 1/4' Flat Countersunk Head Blind 6-4 Pack of 1000 Fastener Set LS20406F
Brand: NewPrMScrews
SKU: O6260824FDOWI8T9
Price: 158.61 USD
Availability: InStock

Stainless Steel Pop Rivets 3/16' x 1/4' Flat Countersunk Head Blind 6-4 Pack of 1000 Fastener Set LS20406F

$158.61 $397.99

Stainless Steel Pop Rivets 3/16' x 1/4' Flat Countersunk Head Blind 6-4 Qty 1000Open end blind rivets are tubular rivets with a mandrel through the center. The entire rivet assembly is inserted into a hole drilled through the parts to be joined, and a specially designed tool is used to draw the mandrel into the rivet. This expands the blind end of the rivet and snaps off the mandrel. General Product InformationRivet Trade Size : 6-4Rivet Size : 3/16' x 1/4'Drill Bit Size : #11Head Style : Countersunk HeadCountersink Angle : 120 DegreeBody Material : Stainless SteelMandrel Material: SteelQuantity of Rivets in Package : 1000Detailed Product Information:Head Diameter : . 361'Head Height : . 050'Barrel Length : Grip Range : . 188' - . 250'Specification Met : SAE J-1200Shear Strength : 950 lb minTensile Strength : 1200 lb minMandrel Break Load : 1900 lb maxKey Notes:The Countersunk head style provides a smooth offside surface and sufficient clearance for moving parts which pass over the rivet head. Made of grade 305 stainless steel which provides excellent corrosion resistance. Stainless steel rivets should be used when fastening materials of similar mechanical and physical properties. The steel mandrel is pulled into or against the rivet body, breaking at or near the junction of the mandrel shank and its upset end. Stainless steel rivets offer the Highest tensile, shear, and break load strengths of all rivet materials.
