6.0KW Square Air Cooled ER32 Chuck 220v 380v 4 Bearing 300Hz 18000rpm for CNC Router Woodworking Engraving(6.0kw 220V)

Electric Motors

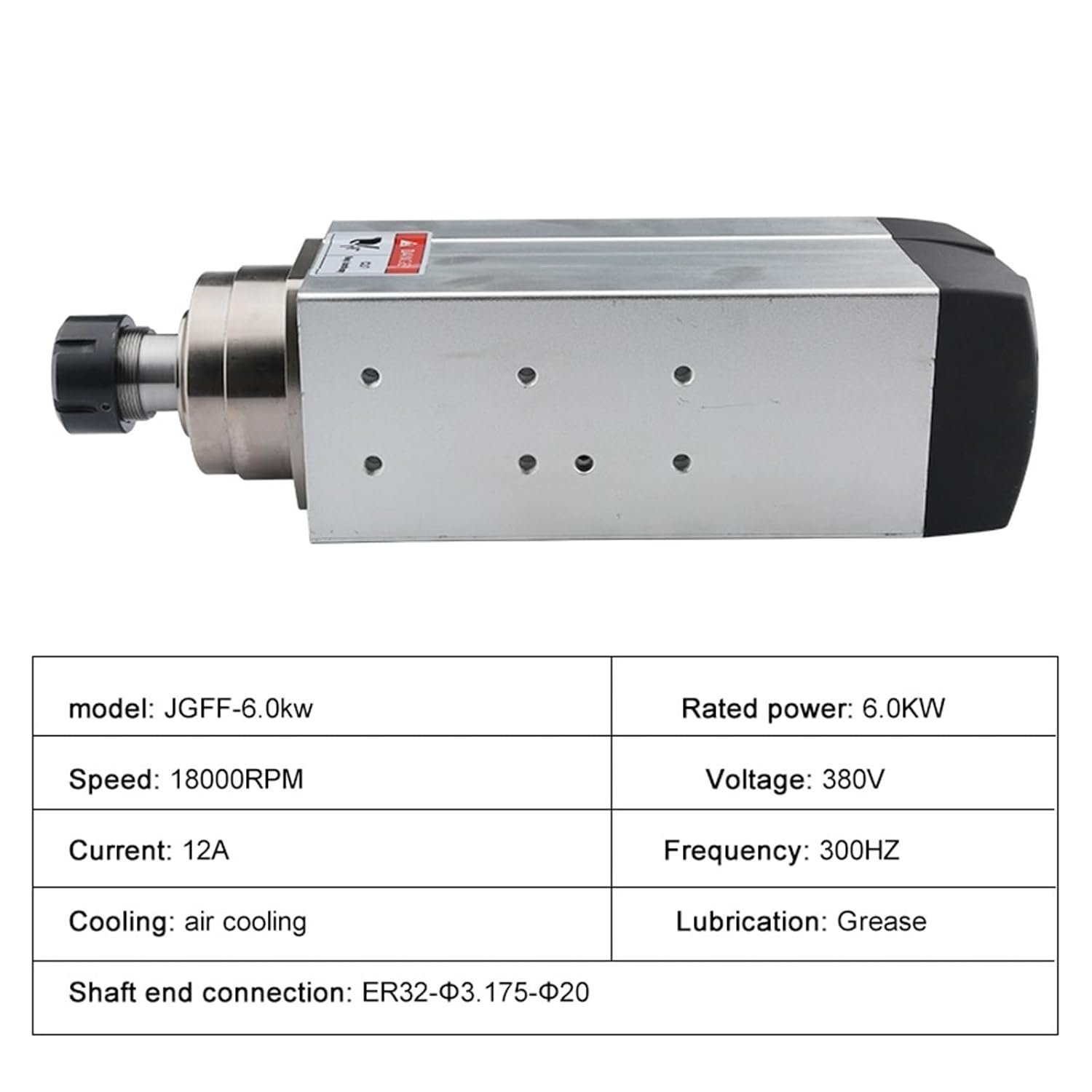

Size: JGFF-6.0kw (without flange)
Speed regulation mode: The three-phase output inverter can change the speed by changing the frequency of the inverter.
Cooling method: air cooling

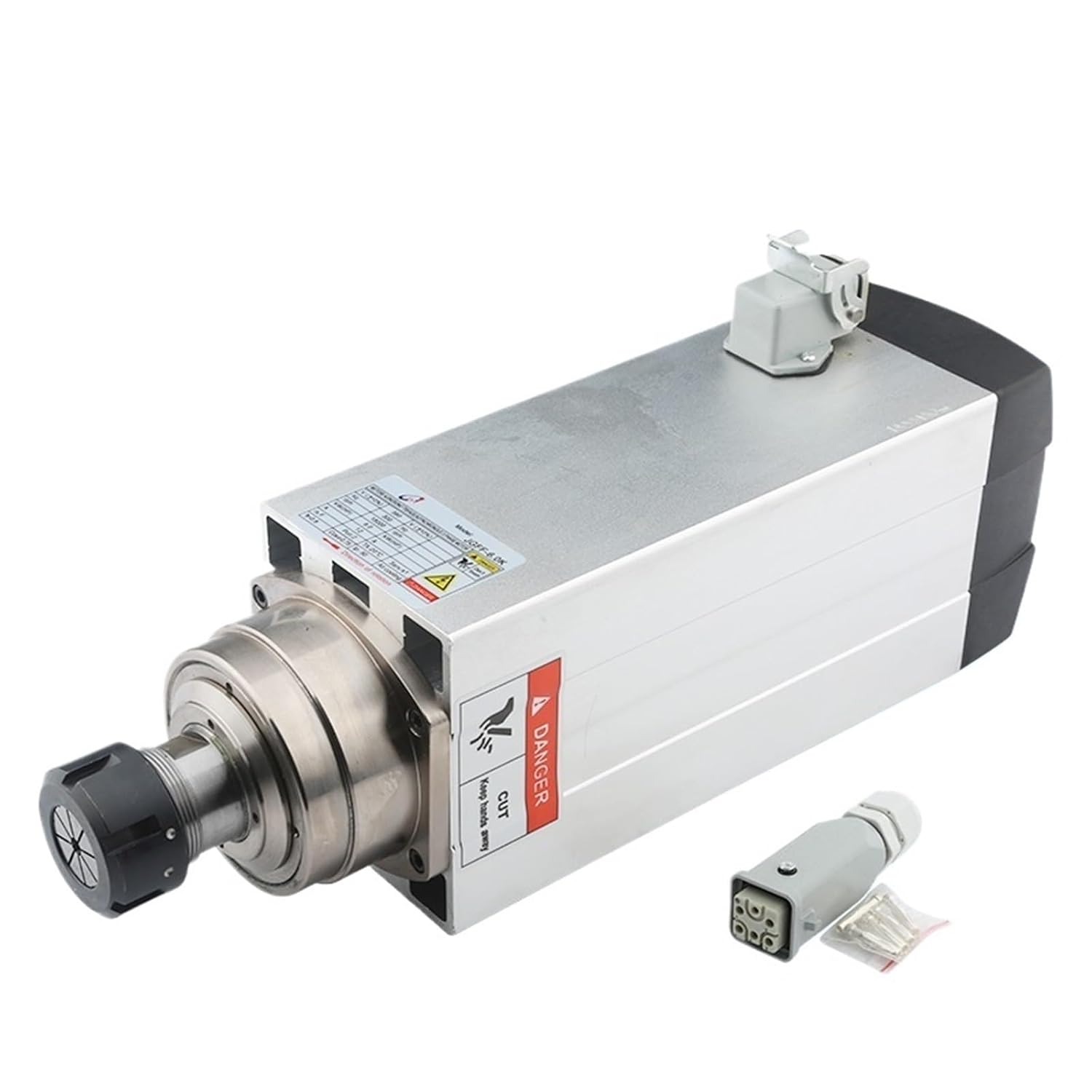

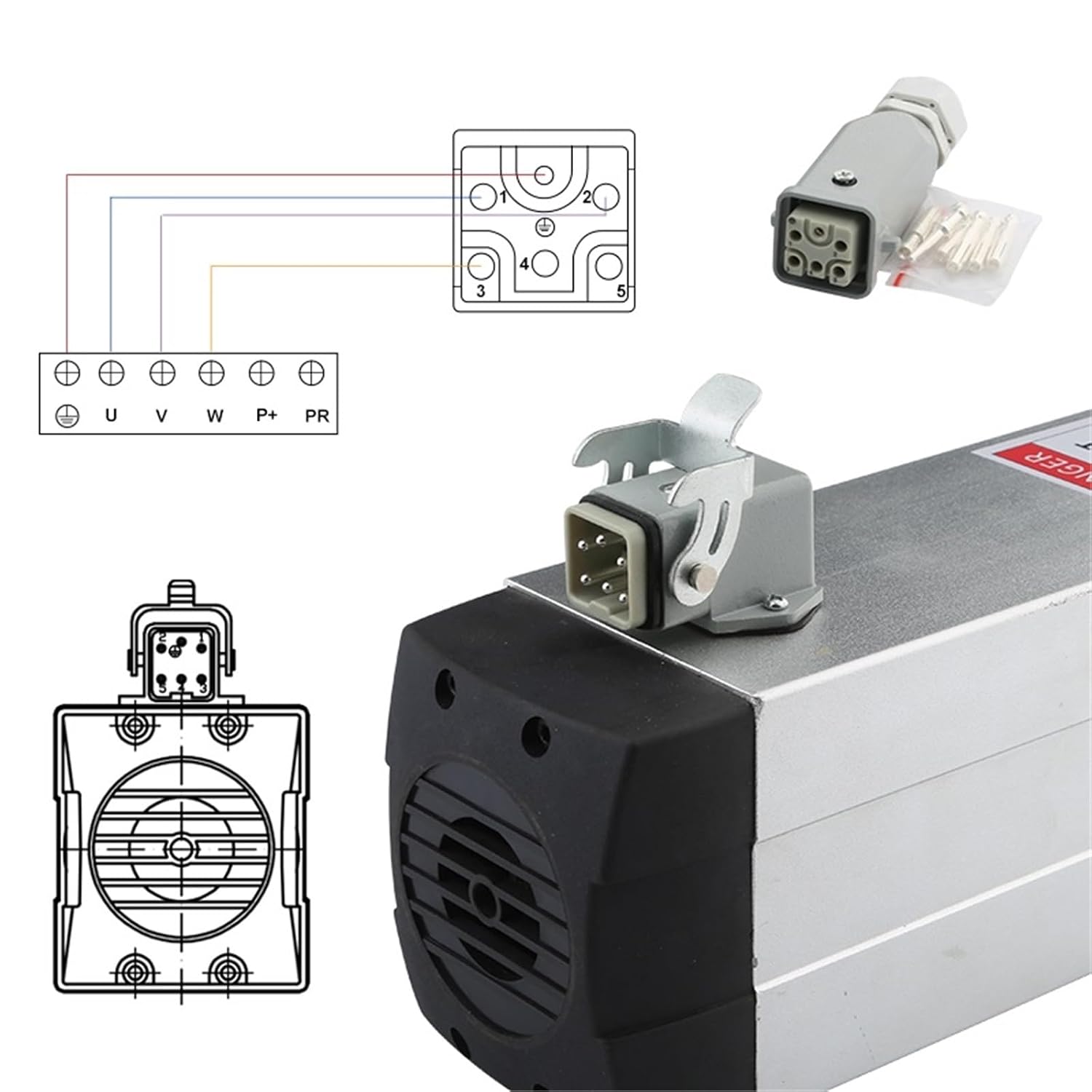

Power interface: optional 6-pin square air . The air plugs are marked as '1', '2', '3', '4', '5' and 'GND'. '1', '2', '3' are connected to the inverter (U, V, W), and 'GND' is connected to the inverter ground.
Power: 6.0kw
Voltage: 220V 380v
Current: 12A
Frequency: 0-300Hz
Speed: 0-18000rpm
Runout: less than 0.01mm
4 fully sealed angular contact bearings

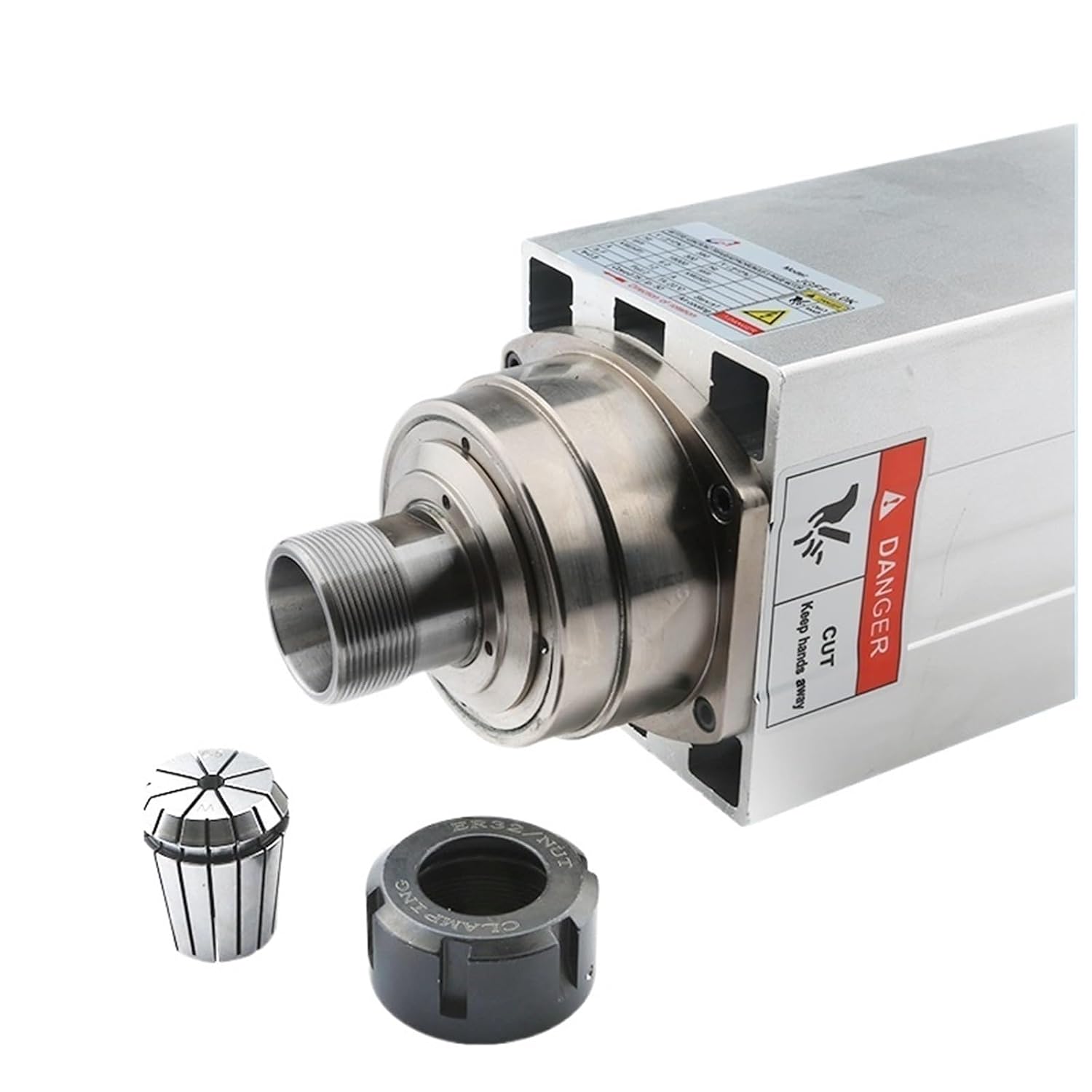

Chuck: ER32
Clamping tool diameter: 1mm, 2mm, 3mm, 3.175mm (1/8), 4mm, 5mm, 6mm, 6.35mm (1/4), 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 12.7mm (1/ 2), 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm
Water-cooled ER32 chuck
Grease lubrication

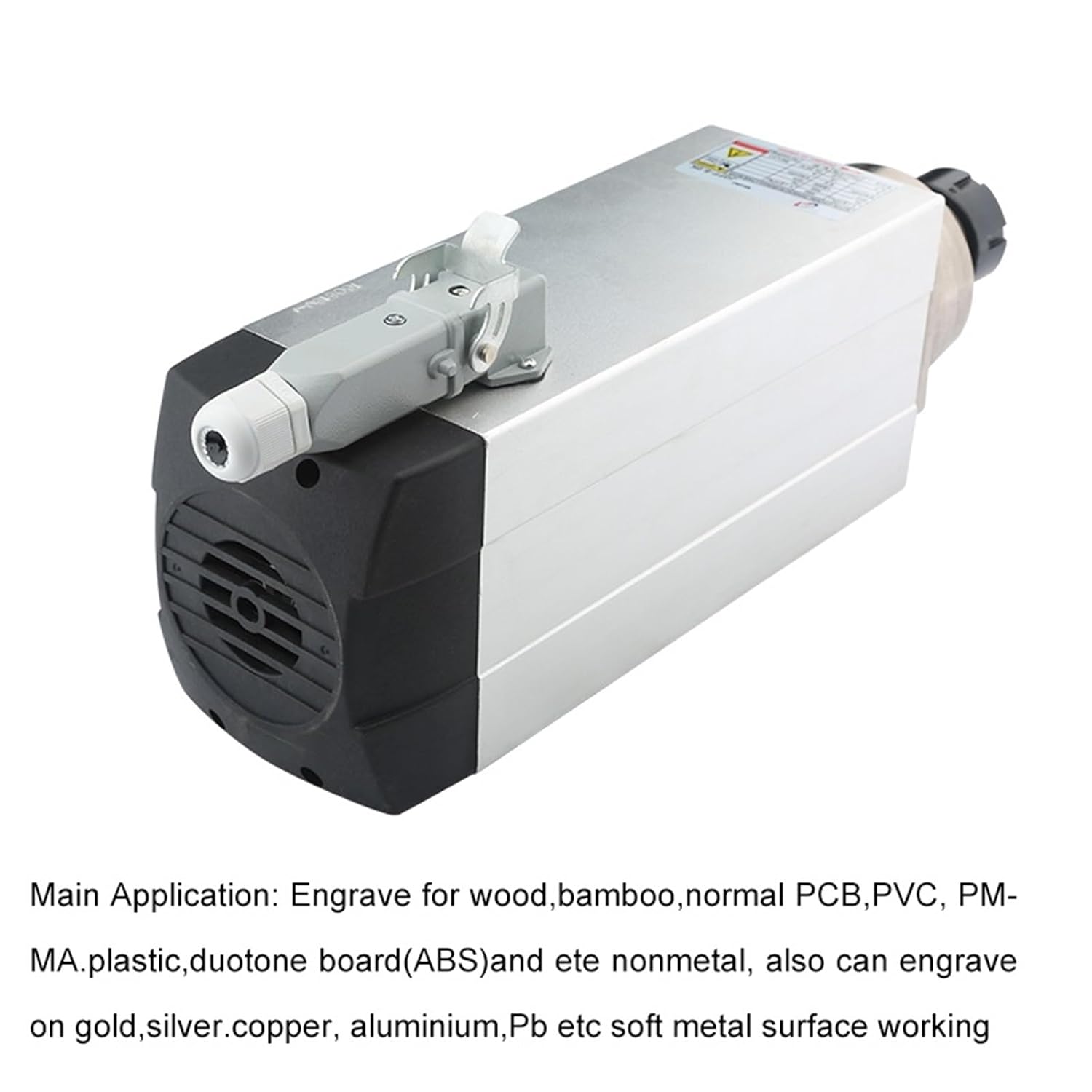

Main purpose: used for wood, bamboo, ordinary PCB, PVC, PMMA, plastic, bamboo, two-color board (ABS) and other non-metallic carvings.
The working environment temperature of the is usually -10~40.
Before installing the first electric to rotate the head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular joint bearings can extend the life of the .
The longer the length, the greater the and the greater the power.
Careful assembly makes the more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are to high temperature and low heat
3. The ball bearing has low friction, low noise and long service life.
When the is stored and transported, the bearing condition inside the high-speed grease will change, and the customer should run it at low speed for 30 minutes. Then increase slowly at a speed of 3000 rpm, running for 20 minutes each time. The and inverter should work together. The specifications and parameter settings of the inverter match the parameters.
To connect the inverter main shaft, the three-phase inverter power cord should be welded to the 1 (U), 2 (V), 3 (W) pin, and the grounded pin 4. After turning on the power, observe whether the rotation axis always shows the direction. If it is inconsistent, turn it off immediately, and replace the two wires of the three-phase power supply connected to the inverter and the .
Before using the every day, it must run at low speed for 15-20 minutes. Clamp the cutter on the , the chuck nut, chuck, and cutter must be clean enough. The shank inserted into the chuck must be larger than 15mm.
