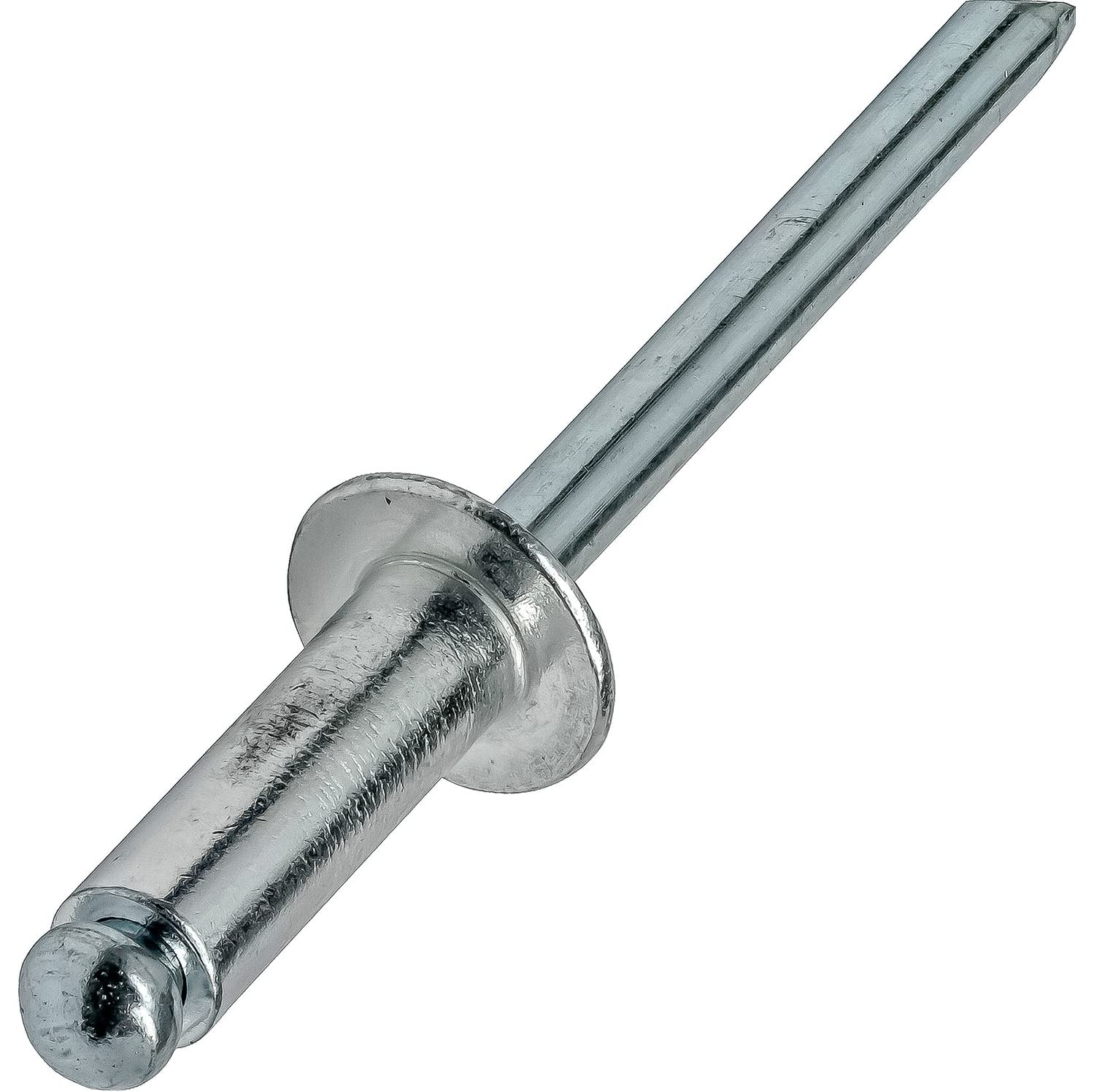

Pop Rivets 3/16' x 1/4' Aluminum Body Steel Mandrel Dome Head Blind Pack of 5000 Fastener Set LS23934F
Pop Rivets 3/16' x 1/4' Aluminum Body Steel Mandrel Dome Head Blind Pack of 5000 Fastener Set LS23934F
Pop Rivets 3/16' x 1/4' Aluminum Body Steel Mandrel Dome Head Blind Qty 5000Open end blind rivets are tubular rivets with a mandrel through the center. The entire rivet assembly is inserted into a hole drilled through the parts to be joined, and a specially designed tool is used to draw the mandrel into the rivet. This expands the blind end of the rivet and snaps off the mandrel. General Product InformationRivet Trade Size : 6-4Rivet Size : 3/16' x 1/4'Drill Bit Size : #11Head Style : Dome HeadBody Material : AluminumMandrel Material: SteelQuantity of Rivets in Package : 5000Detailed Product Information:Head Diameter : . 394'Head Height : . 06'Barrel Length : . 45'Grip Range : . 188' - . 250'Specification Met : SAE J-1200Shear Strength : 380 lb minTensile Strength : 500 lb minMandrel Break Load : 1050 lb maxKey Notes:The steel mandrel is pulled into or against the rivet body, breaking at or near the junction of the mandrel shank and its upset end. The steel mandrel gives this style of rivet greater tensile and shear values than aluminum rivets with aluminum mandrels. An aluminum blind fastener which has a self contained mechanical feature (a mandrel) which permits the formation of an upset on the blind end of the rivet and expansion of the rivet shank during the setting to join the component parts of an assembly branded open end blind pop rivets meet SAE J-1200 Standards which establishes the dimensional, mechanical, and performance requirements of inch and metric break mandrel blind rivets suitable for use in joining the component parts of an assembly. An aluminum blind fastener which has a self contained mechanical feature (a mandrel) which permits the formation of an upset on the blind end of the rivet and expansion of the rivet shank during the setting to join the component parts of an assembl
Item details
- ASIN : B09Y45HLCW
- Brand : NewPrMScrews
- Fastener Type : Blind
- Manufacturer : NewPrMScrews
- Model : LS23934F
- Part Number : LS23934F
Materials & Care
- Material Type : Aluminum
Measurements
- Number of Pieces : 5000
- Size Name : One Size
Style
- Item Shape : Dome,mandrel
