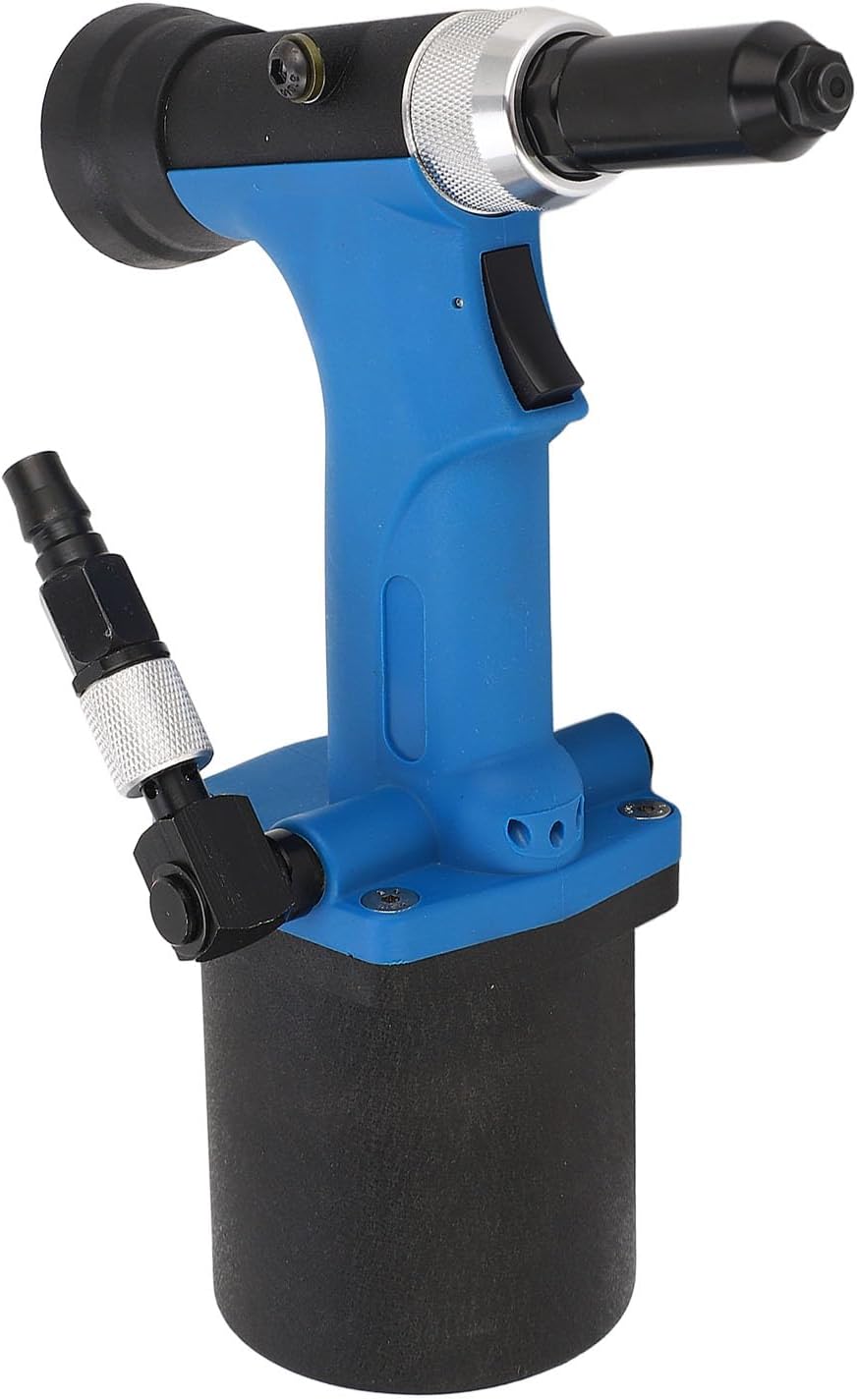

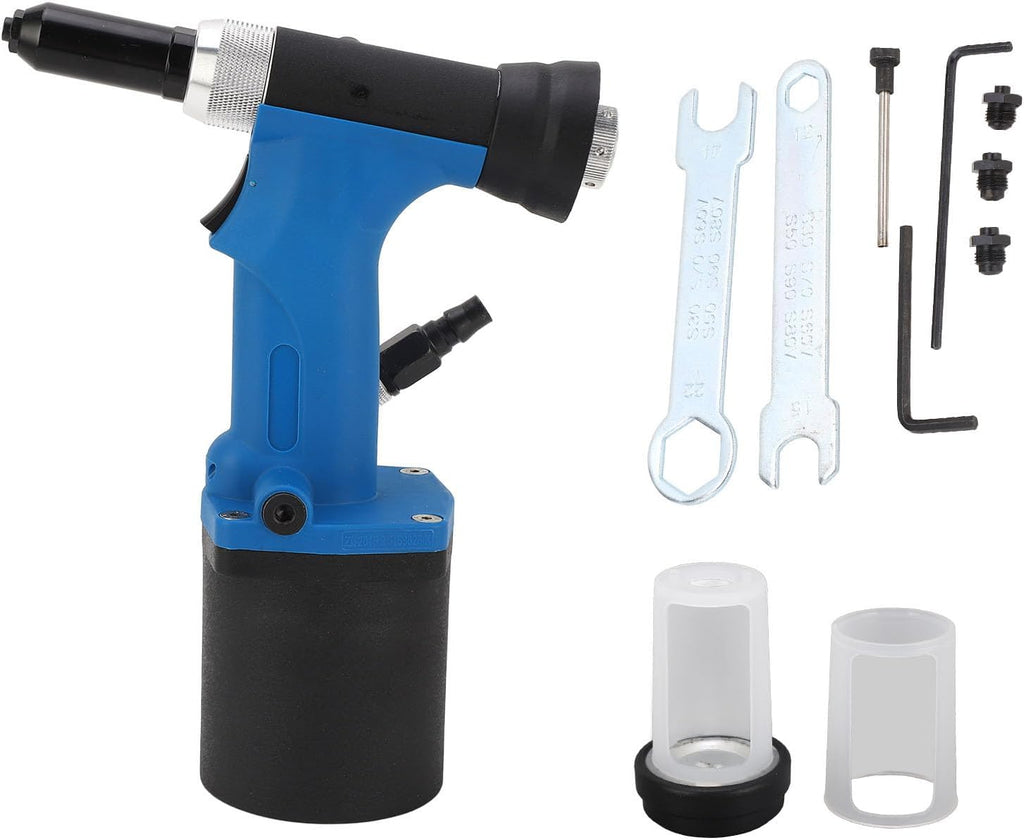

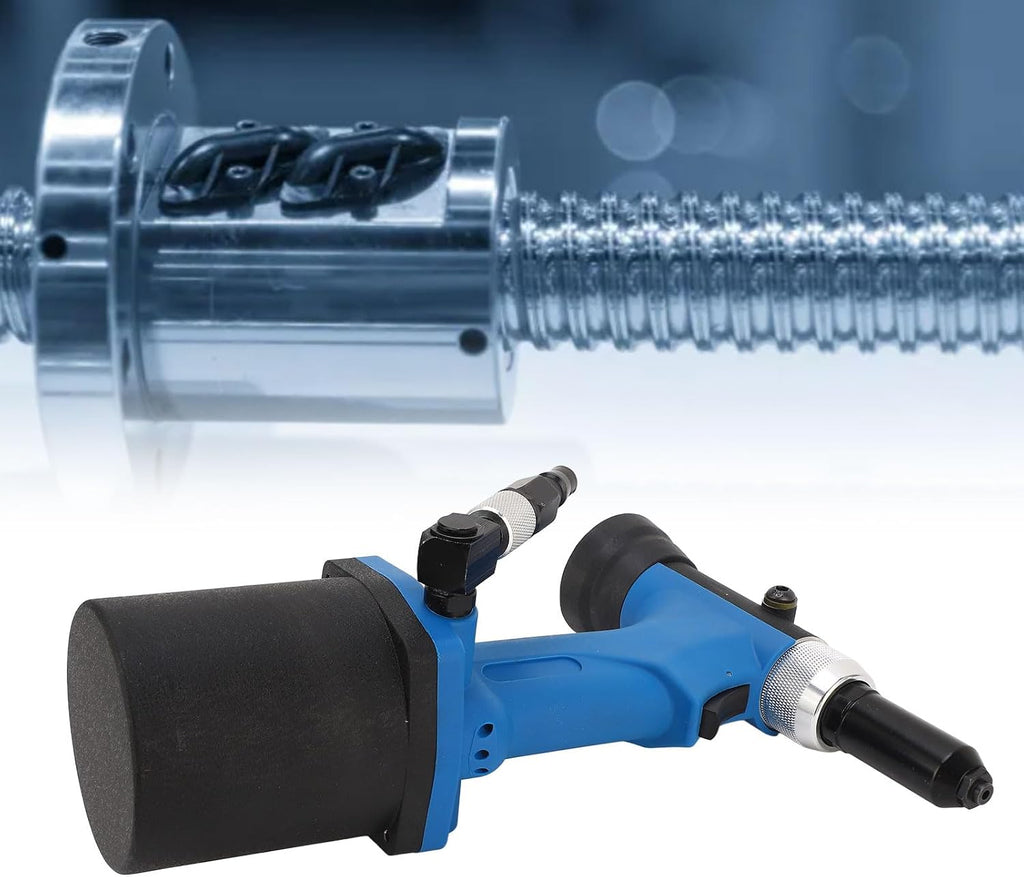

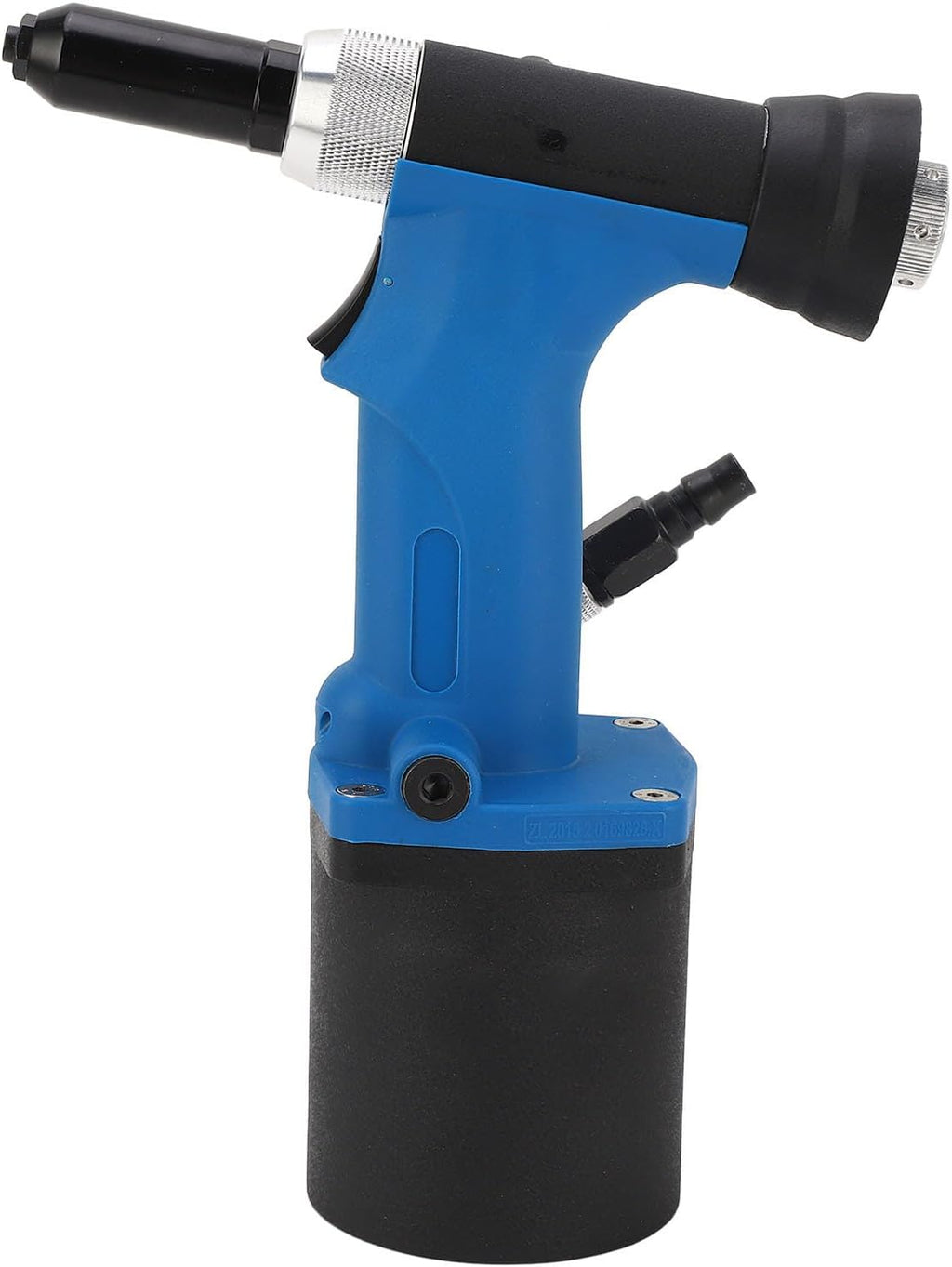

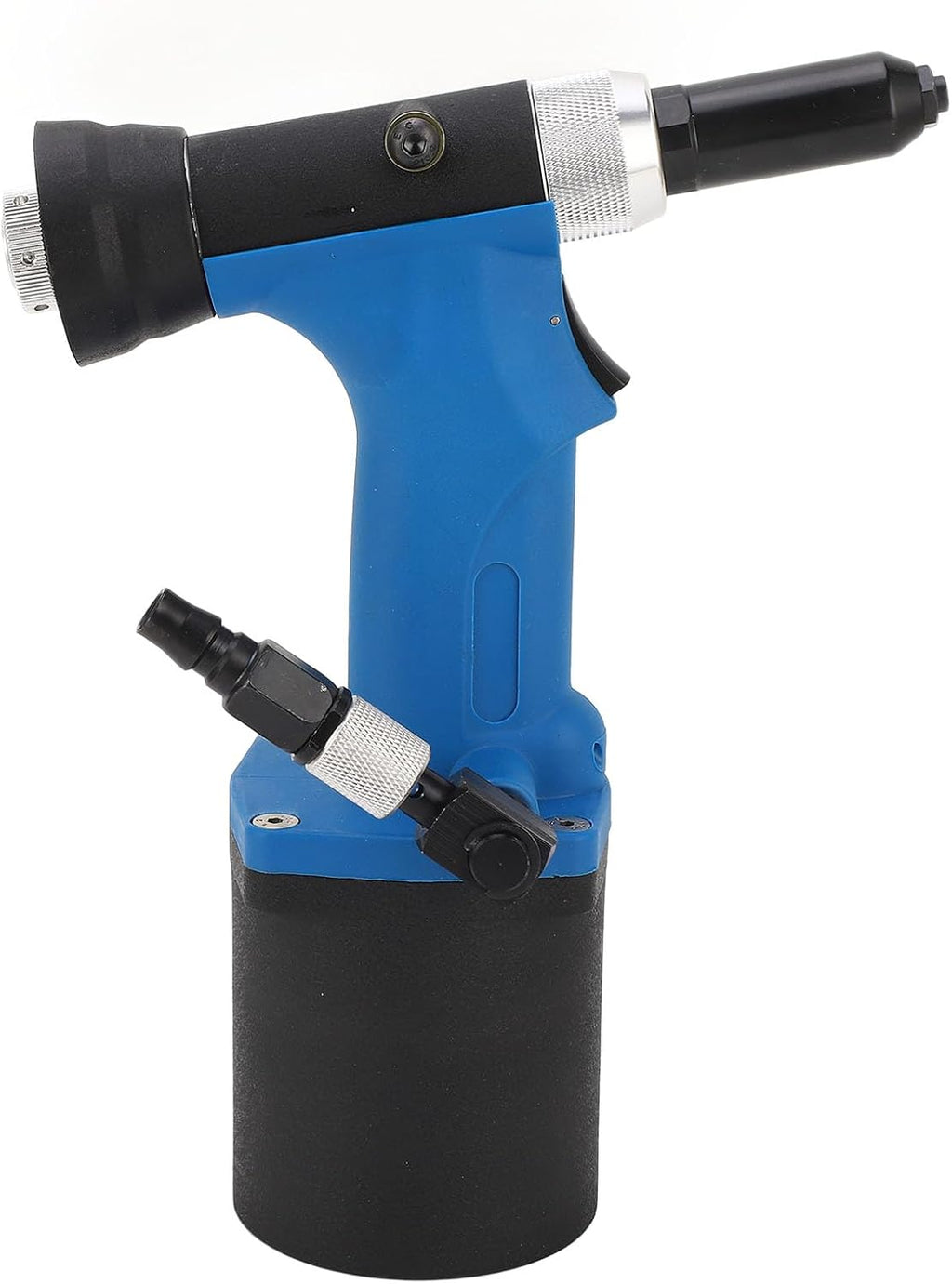

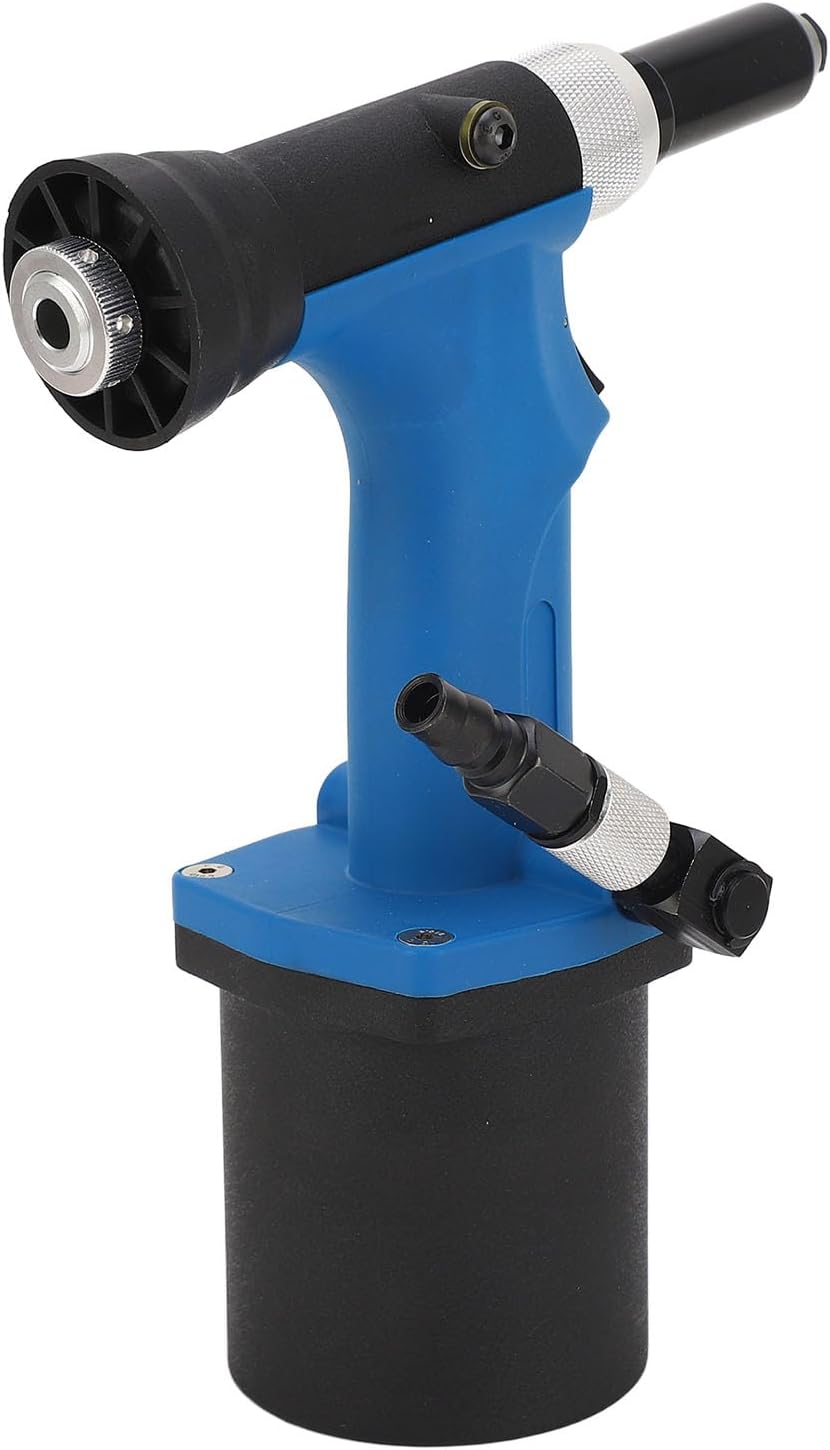

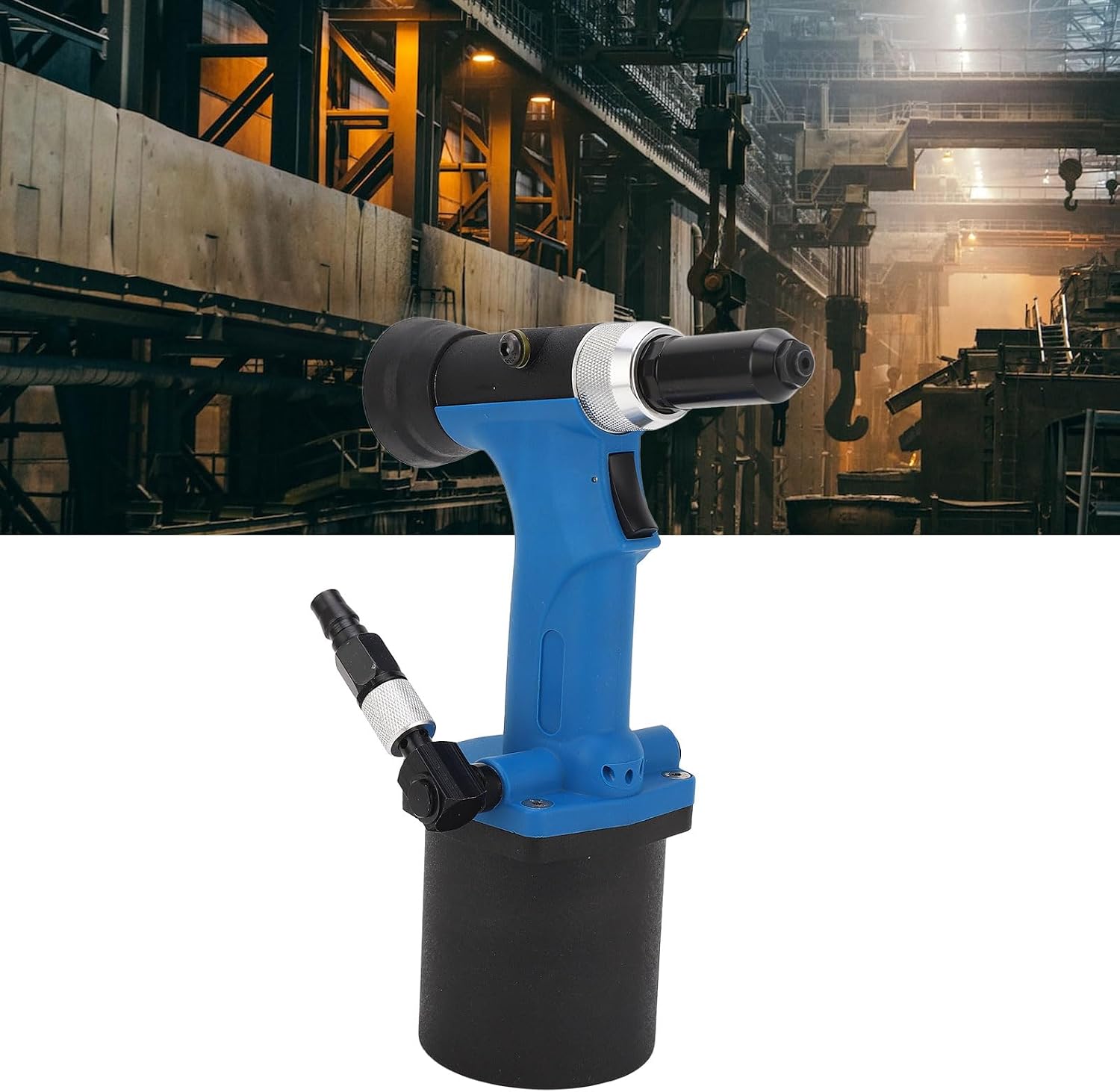

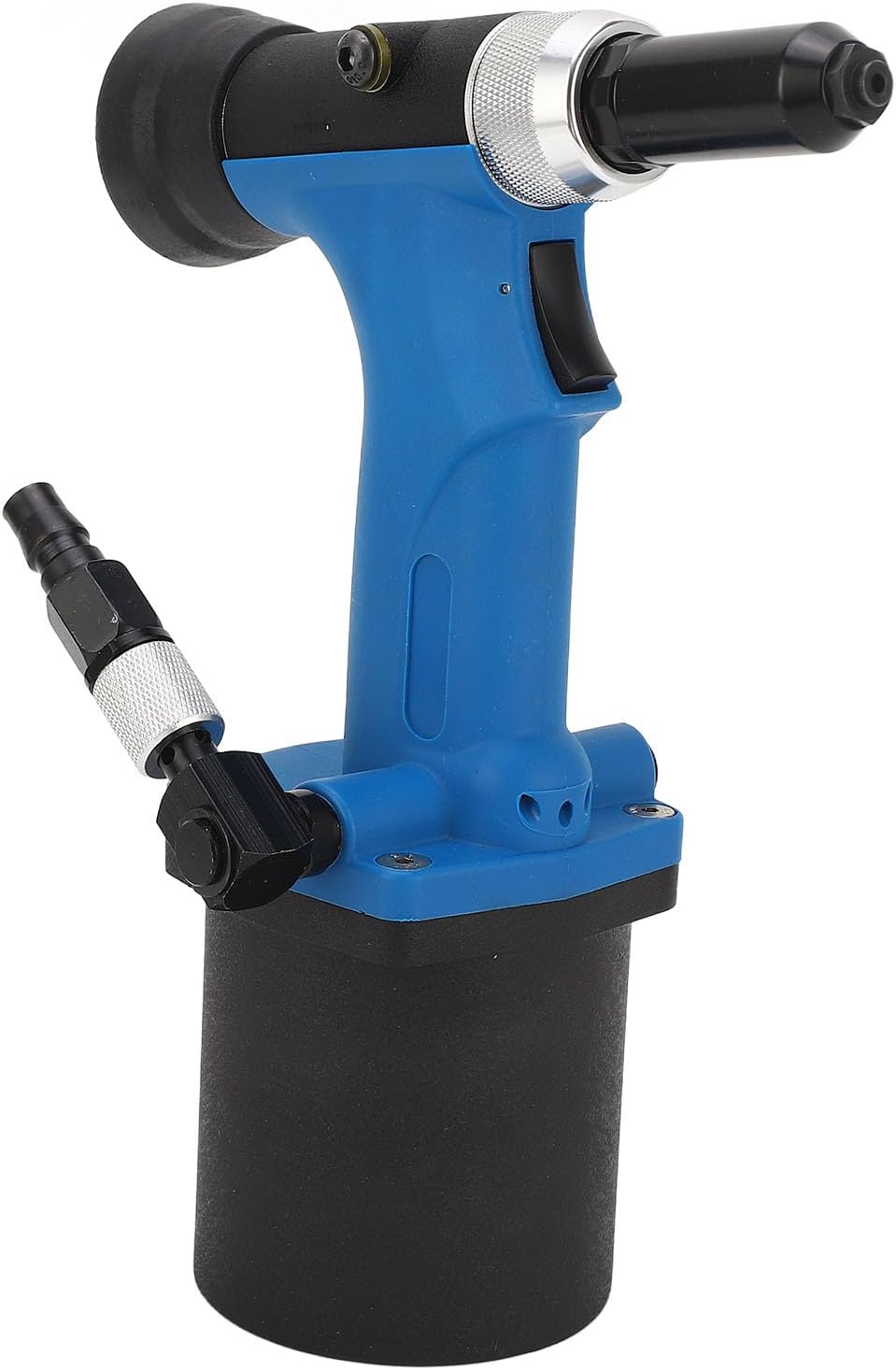

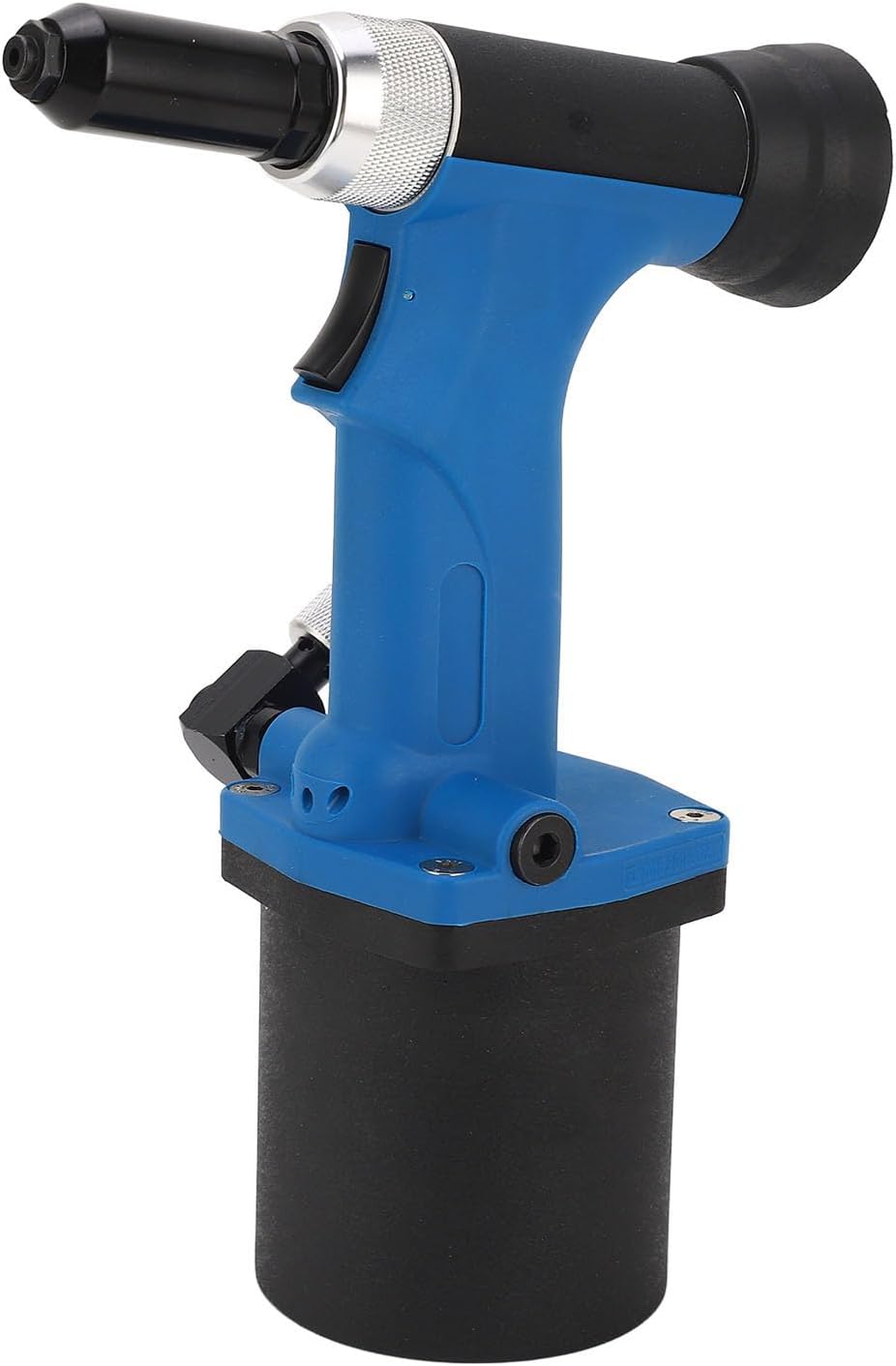

Name: Rivet Nut Tool, Self-Suction Alloy Steel 1/4 Inch Inlet Pneumatic Rivet Nut Gun, for Metal Sheet
Brand: Zisemeil
SKU: CO260824Q3F9JLG8
Price: 51.26 USD
Availability: InStock

Rivet Nut Tool, Self-Suction Alloy Steel 1/4 Inch Inlet Pneumatic Rivet Nut Gun, for Metal Sheet

$51.26 $129.69

1. Wide range of uses: This pneumatic rivet nut gun can be used with 5/32 inch (4.0mm), 3/16 inch (4.8mm), 1/8 inch (3.2mm), 3/32 inch (2.4mm) rivet nuts.
2. Pullable Material: This pneumatic rivet gun is suitable for riveting nuts of various materials such as aluminum, copper, iron, stainless steel, etc.
3. High efficiency: The riveting tool adopts a pneumatic drive design, which saves more labor, has riveting speed, is firmly riveted, and there is no machine crash.
4.Ergonomic Design: This rivet nut gun is ergonomically designed, easy to grip, easy to operate, lightweight, and won't tire you out even after long-term use.
5. Made of alloy steel: The rivet gun body is made of high-grade alloy steel material, which is sturdy and resistant to breakage.

specification:
Item Type: Pneumatic Rivet Nut Gun
Material: Alloy steel
Air pressure used: 6.3-8kgf/cm2
Tensile force: 135kgf (1.323kN)
Entrance port: 1/4 inch
Pullable rivet specification: Approx. 4mm/5/32 inch, 4.8mm/3/16 inch, 3.2mm/1/8 inch, 2.4mm/3/32 inch
Tensile Rivet Material: Aluminum, Aluminum Alloy, Steel, Iron, Stainless Steel
How to use:
1. Used air pressure: 6.3‑8kgf/cm2.
2. Hydraulic oil grade 46#.
3. Before using, observe from the rear of the rivet gun to sure that the claws are open and are in a round hole, and that foreign objects are not in the way of the rivet nut removal route before using normally.
4. The rear guide tube should be completely screwed into the oil piston rod and locked in reverse rotation with the lock nut. The front and rear guide tubes are also threaded and must be screwed completely. If the brake ring clamp cannot be aligned with the front and rear guide tubes at the same time, you can adjust by rotating the front guide tube slightly in the opposite direction. Brake ring clamp. Note: Do not loosen the front guide tube more than once in the opposite
