Concrete Rebound Hammer Tester Resiliometer Schmidt Hammer Test Meter Tools Within the Scope of 10-60Mpa

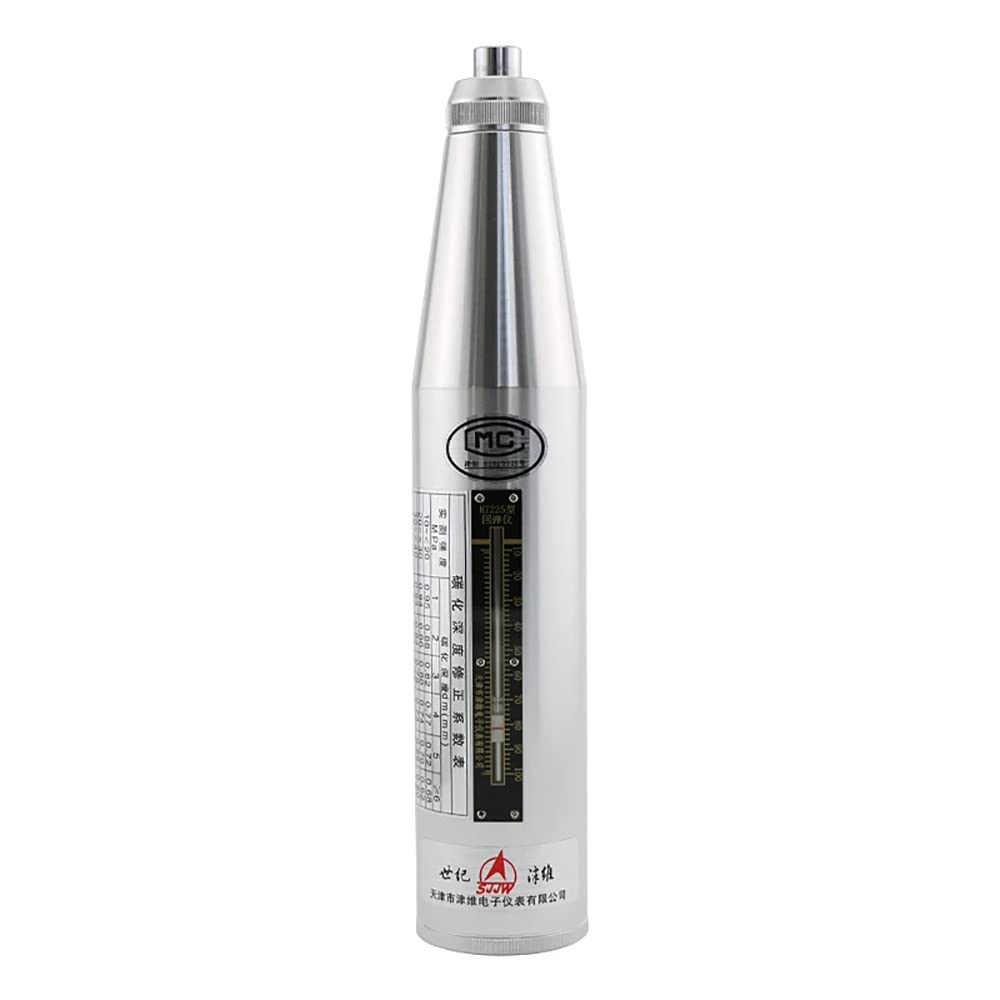

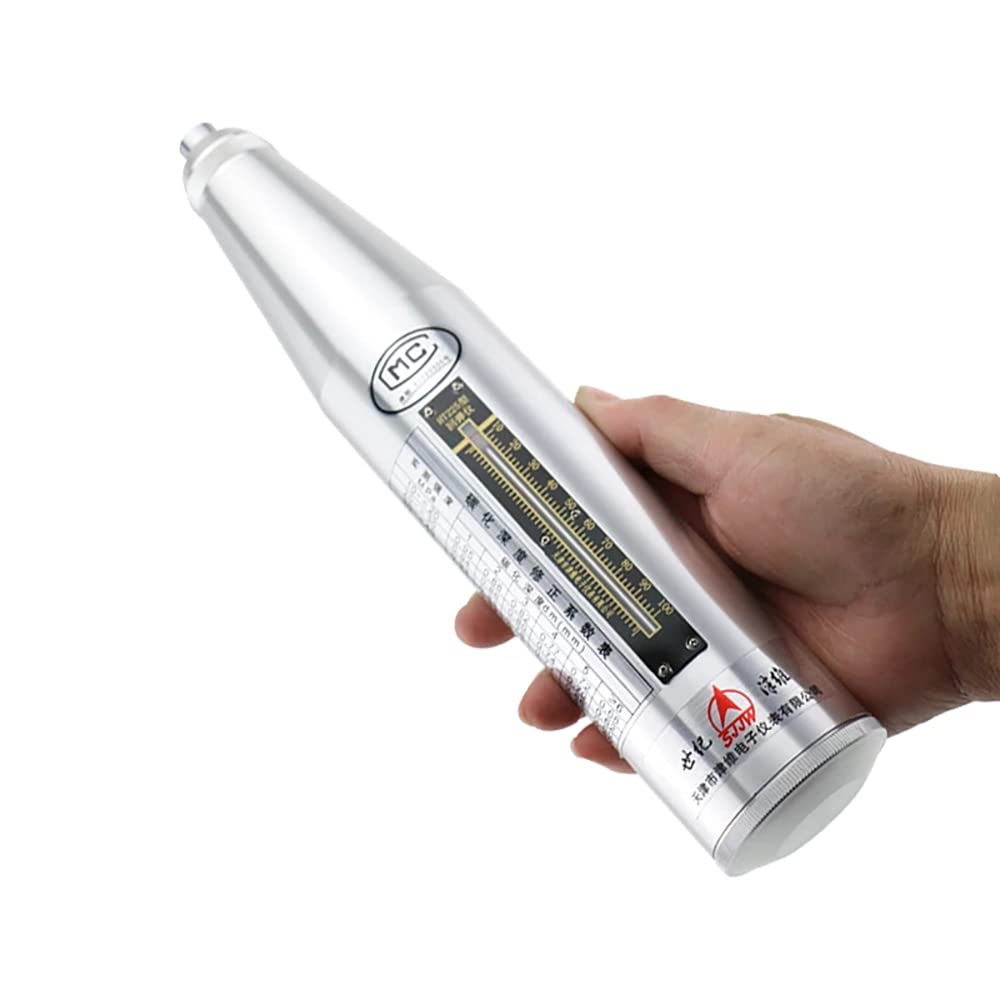

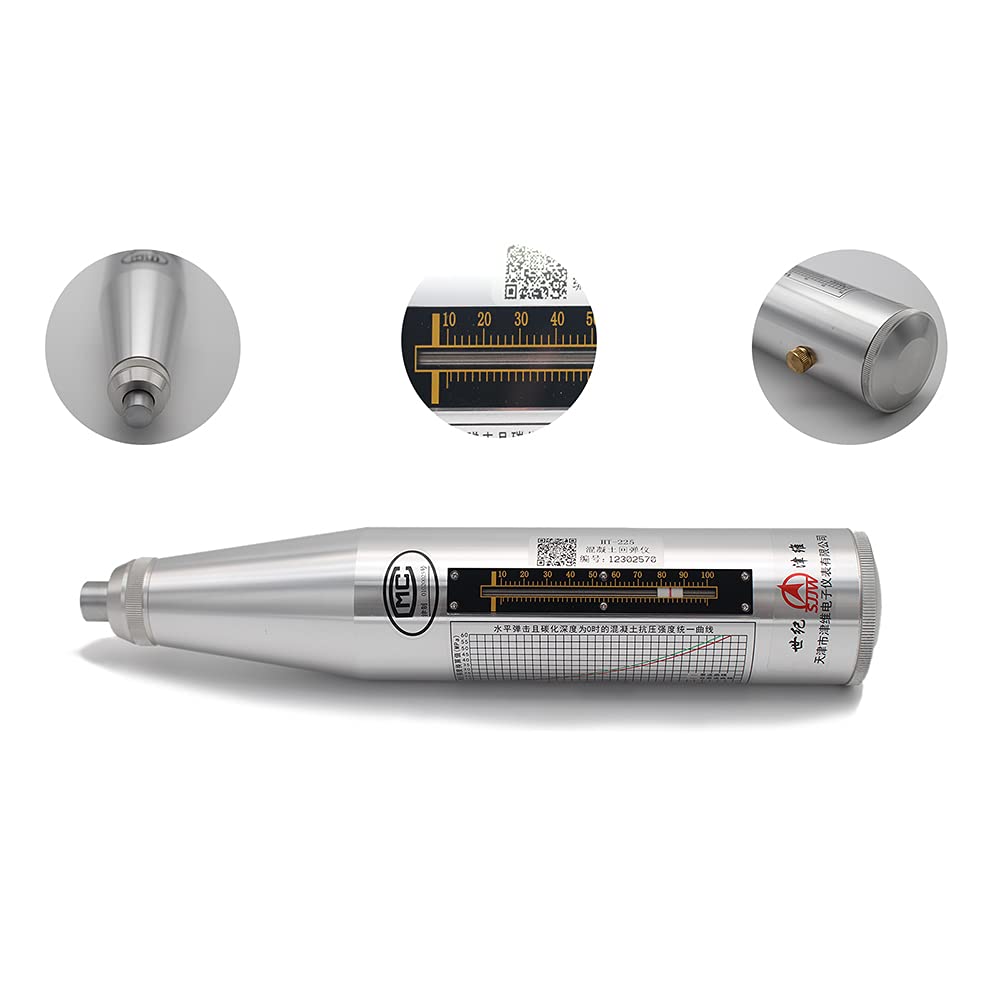

HT225 Concrete Rebound Hammer Tester Resiliometer Schmidt Hammer Test Meter Tools within the scope of 10-60Mpa

Introductions:
Consistent with GB/T9138-1988 standards and JJG817-93 statutes and JGJ/T23-2001 technical regulations
HT-225 Concrete Test Hammer generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength

Features:
Pointer slider with external spring ring structure, both convenient for the friction adjustment,and ensures that the pointer shaft and pointer slider friction uniform, to ensure the accuracy of the instrument
Peer-products is relatively high accuracy, quality and cheap, long service life
Super-hard aluminum shell to avoid on-site work injury apparatus, to extend the service life
Imported materials Center guide rod, high precision

Parameters:
Test range: 10-60Mpa
Impact kinetic energy: 2.207J
Spring tension of spring tension: 758±30N/m
Strike tension spring working length: 61.5±0.3mm
Steel drill rate set rebound value: ≤80±2

Features & Specs

• Measurement Type : rebound
• Power Source : Battery Powered

Item details

• ASIN : B07GKHMMLC
• Brand Name : Aitoserlea
• Manufacturer : top-tool
• Model : HT225
• UPC : 652054273772

Style

• Color : HT225

User guide

• Specification Met : Gb/T9138-1988, Jjg817-93, Jgj/T23-2001
